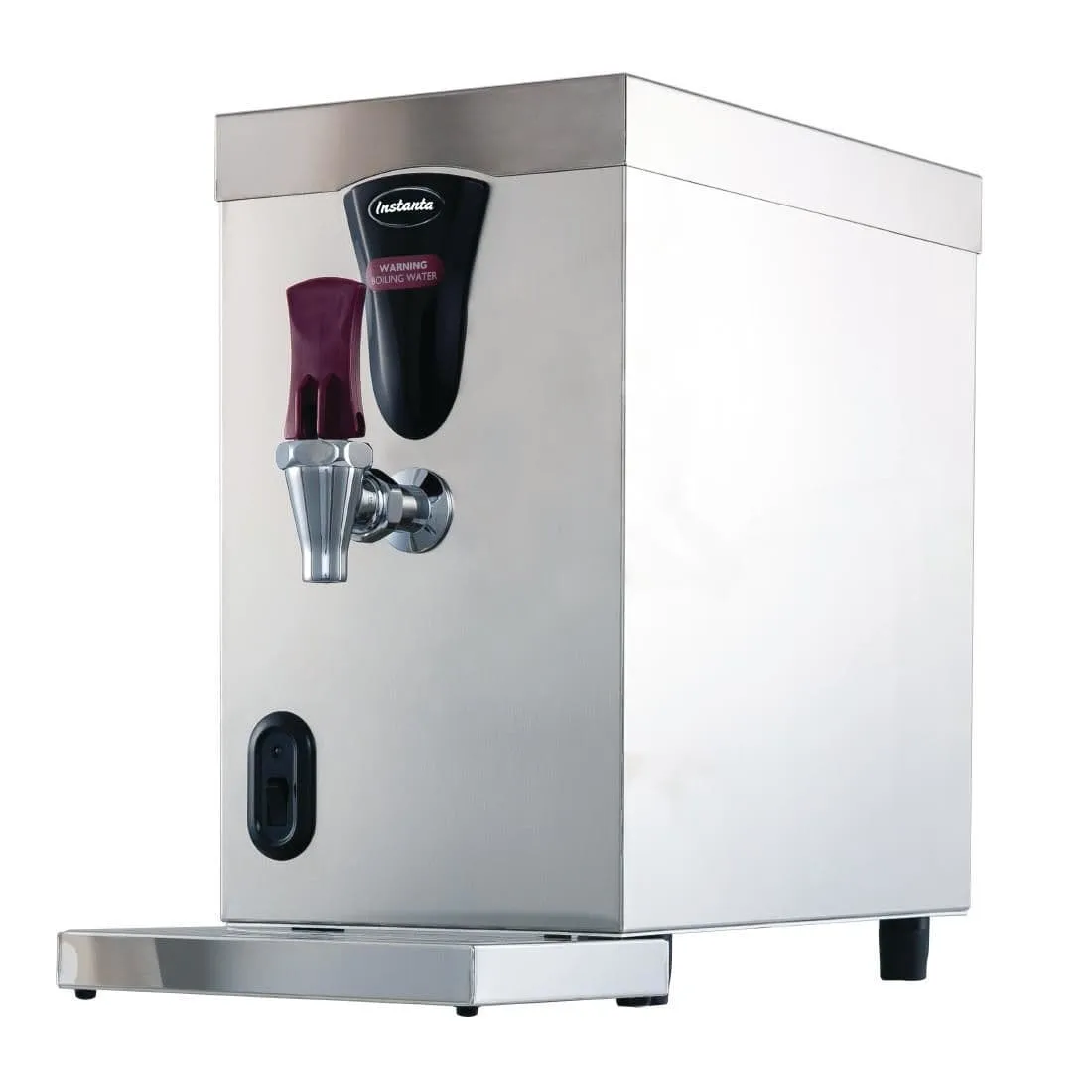

CTS3 SUREFLOW COUNTER TOP BOILER 3LTR

The CTS3 (Previously 1000M) model is designed for those locations where space is very limited and is useful to customers who are trying to fit a water boiler on a worktop or below wall cupboards.

Features and Benefits

· Self diagnostics system
· Long-life incoloy element
· Well insulated for minimal heat loss & energy use
· Stainless steel drip tray included
· Complete with 1.75 metres of cable & 13 amp plug
Installation
Easy to install on a stable worktop.
Plumbing

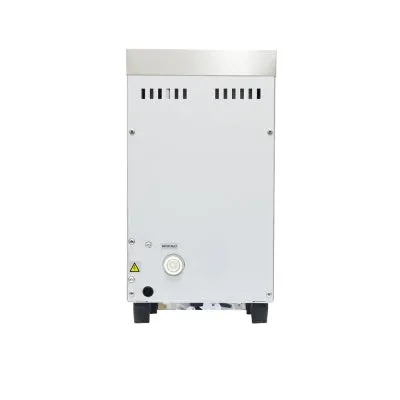

Designed for direct connection to a potable cold water supply using the 1.5 metre (3/4” BSP) hose supplied. An isolating valve should be installed between the supply and the heater. Rear supply connection and choice of rear or front overflow is available (rear option requires kit not supplied).

Electrical
To be connected to 230 volt supply with a suitable break capacity.
Construction
Mirror finished stainless steel case.
Stainless steel heating chamber.
Low voltage switching.
Two safety cut-outs.

Approvals
WRAS approved.

SPECIFICATION FOR 1000-M SureFlow Counter Top Boiler 3Ltr
