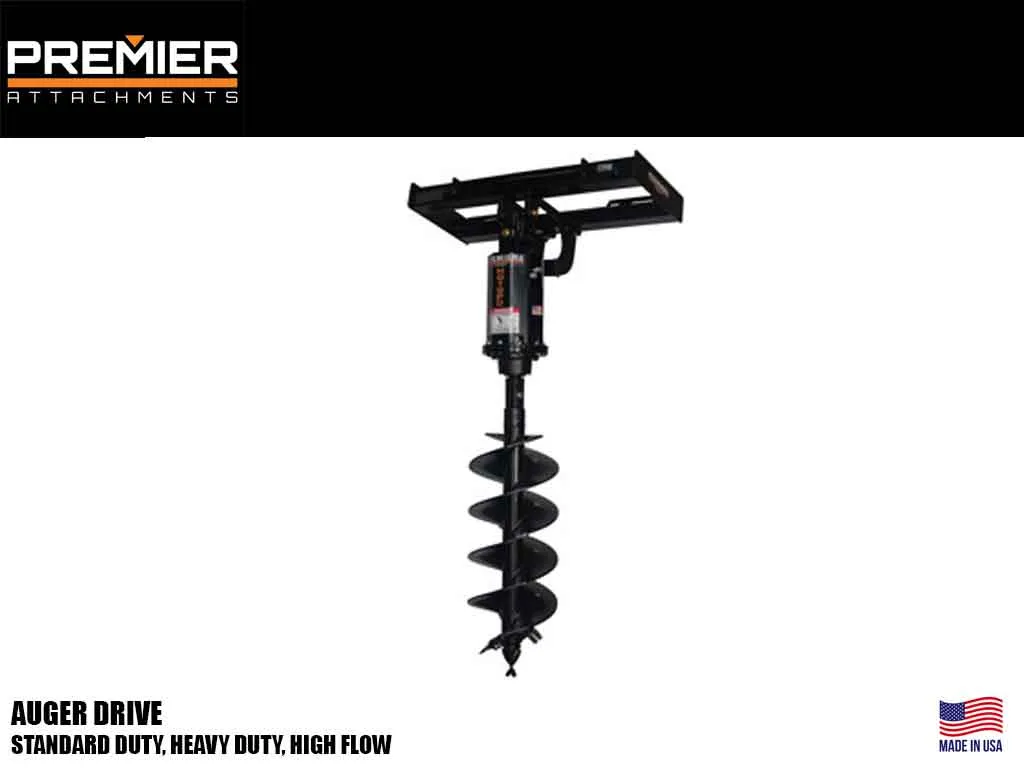

SKID STEER EARTH AUGER DRIVES

Premier Attachments offers three types of skid steer loader auger drives: Standard Duty, Heavy Duty, and Heavy-Duty High flow. The Standard Duty auger drive is designed for light to moderate drilling conditions. The Heavy-Duty auger drives are built with industrial grade components for the toughest of drilling conditions. Our Heavy-Duty High Flow auger drives are specifically designed to maximize the high flow capability of torque and speed.

No drain line is required
All auger drives are designed and engineered for the higher hydraulic pressures of today’s equipment
Universal Skid Steer mount is an industry standard for all makes and models, however we do offer late model obsolete mounts for older machines
Output shafts available in 2" hexagon, 2-1/2" hexagon and 2-9/16" round

SPECS

Standard Duty Auger Drives
Model	Max Auger Diam.	Min Hyd: GPM/RPM	Max Hyd: GPM/RPM	Min Hyd: PSI/Torque	Max Hyd: PSI/Torque	Output	Warranty
MD12PD	24"	8/49	15/81	2500/1409	3500/1972	2" Hex	3 Years
MD14PD	30"	12/50	20/83	2500/1825	3500/2555	2" Hex & 2-9/16" Rnd	3 Years
MD18PD	36"	15/50	25/83	2500/2290	3500/3206	2" Hex & 2-9/16" Rnd	3 Years

Heavy Duty Auger Drives
Model	Max Auger Diam.	Min Hyd: GPM/RPM	Max Hyd: GPM/RPM	Min Hyd: PSI/Torque	Max Hyd: PSI/Torque	Output	Warranty
H015PD	30"	12/47	20/78	2500/1975	3500/2768	2" Hex & 2-9/16" Rnd	5 Years
H019PD	36"	15/46	25/77	2500/2481	3500/3474	2" Hex & 2-9/16" Rnd	5 Years

BIG DAVE

When choosing a auger drive first, decide on the style or "duty" of the drive you want. If you are only using occasionally the standard unit will work fine in most cases. Second, choose the shaft type. The most common now days is the 2" hex shaft. Third, match up the hydraulics of your machine with the hydraulic categories on the website. Finally you can compare specs between brands but that can become overwhelming and confusing. A quick way to determine performance is looking at the max bit specification.
